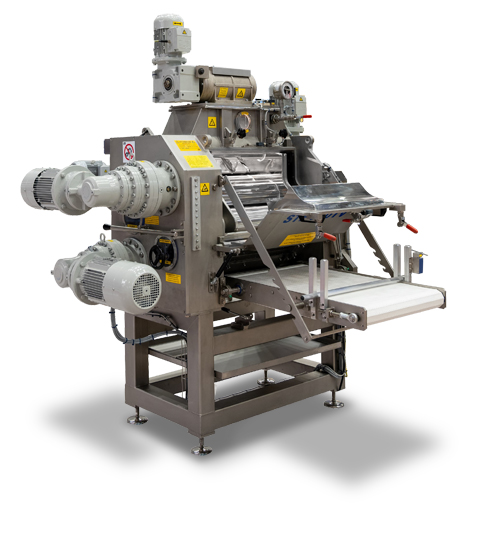

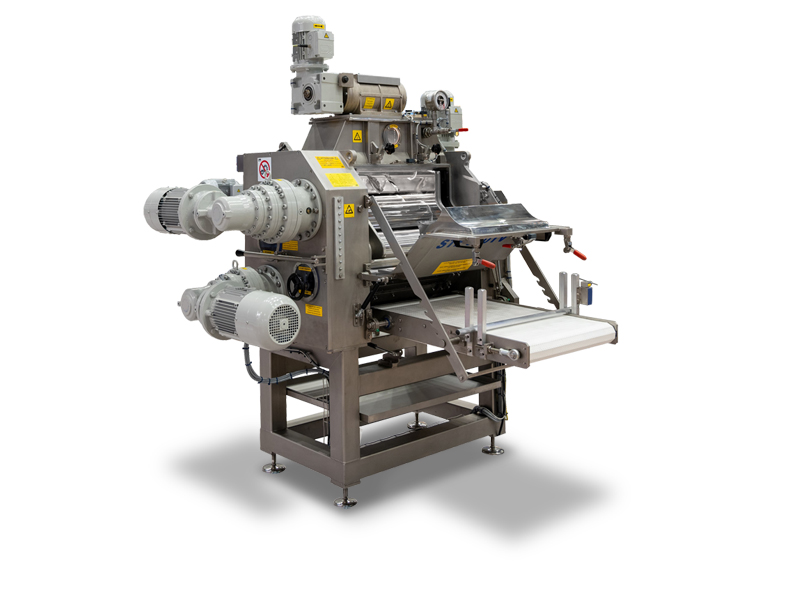

Automatic absolute vacuum dough sheeter in stainless steel for producing pasta sheets. Automatic production which does not require the fixed presence of an operator. Resilient and well-built machine, it has been designed for intensive and heavy use. It is also perfect for kneading hard and compact dough. Great output.

play Video
Play the video

Key features

The “STF TV” vacuum dough sheeter represents a revolutionary innovation
Ideal for producing long ribbon pasta (tagliatelle) or filled pasta
Fresh production capacity: approximately 200-1400 kg/h
Designed for intensive and heavy use
Totally reliable, maximum pasta quality and extremely easy to clean

Main technical features

STF TV

The best dough sheets you can obtain

Ideal for producing every type of dry or fresh pasta, be it filled or simple
Oversizing of all versions without encountering any mechanical problems
The special design of the kneading rollers makes it possible to vary the “dough compression” phase
The machine is equipped with an innovative lever system so that it can be opened completely

Advantages

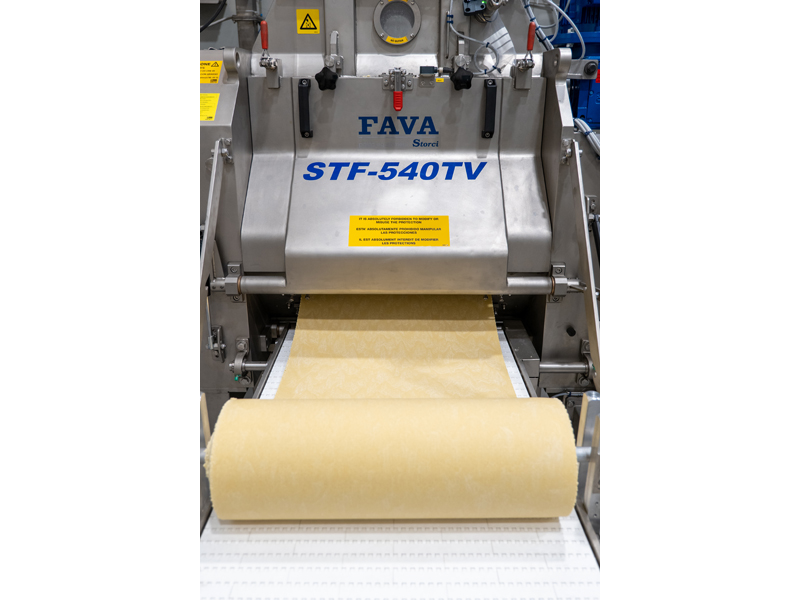

The STF total vacuum dough sheeter is designed to produce pasta sheets in the total absence of air and obtain (based on the use of the same raw materials), a product which is:

A more intense shade of yellow
More elastic
More compact
Better at withstanding cooking

STF TV Graphic

Production Table

	STF-540 TV	STF-600 TV	STF-800 TV	STF-900 TV	STF 1060 TV	STF-1200 TV
Sheet width S (mm)	540	600	800	900	1060	1200
Fresh production (kg/h)	200-600	250-750	300-900	350-1000	400-1200	450-1400
Installed power (kW)	9	9	10.5	11	13.5	15
Weight (kg)	2100	2200	2400	2650	2800	3050
Dimensions LxPxH (mm)	1780x1770x2300	1840x1770x2300	2040x 1770x 2300	2140x 1770x 2300	2300x 1770x 2300	2440x 1770x 2300

Dimension and technical data are not binding. Storci S.p.A. reserves the right to modify them without notice. Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.
