Robo  XI - XD
Automatic tray destackers/stackers

Robo-XI-XD


Automatic robots for trays of short-cut pasta, nested pasta and lasagna.



play Video
Play the video




Key features



  • Automatic tray destacker - stacker with robotized handling
  • Automatic management without the need for operators
  • Standard tray size: 1200x600 mm with heights of 50-70 mm
  • Can also be adjusted to handle non-standard trays (1200x470 mm)




 Main technical features



Robo XI-XD

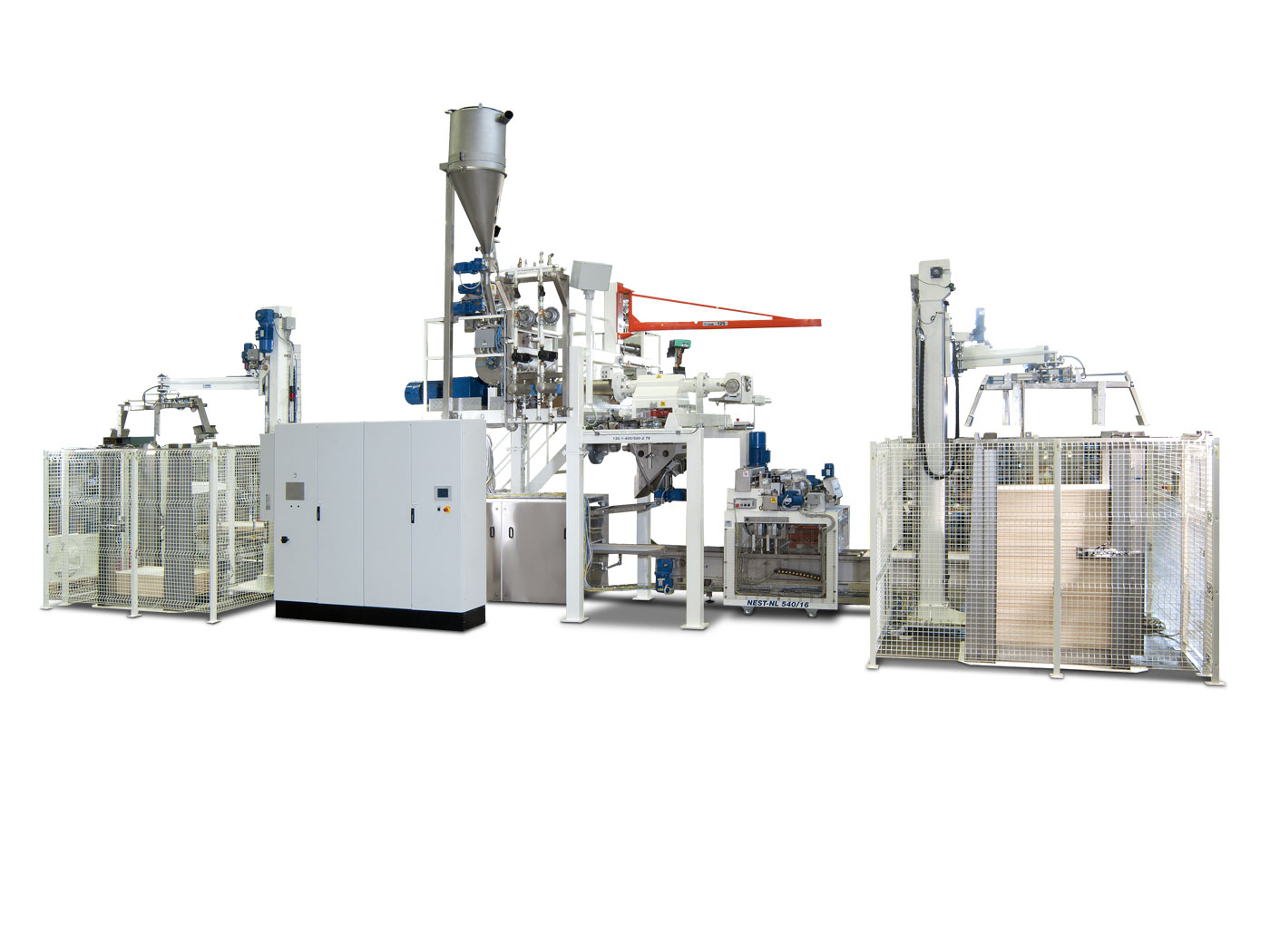

Robo XI-XD as automatic solution

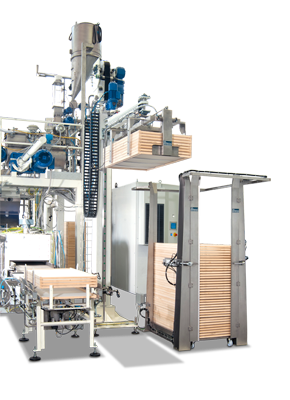

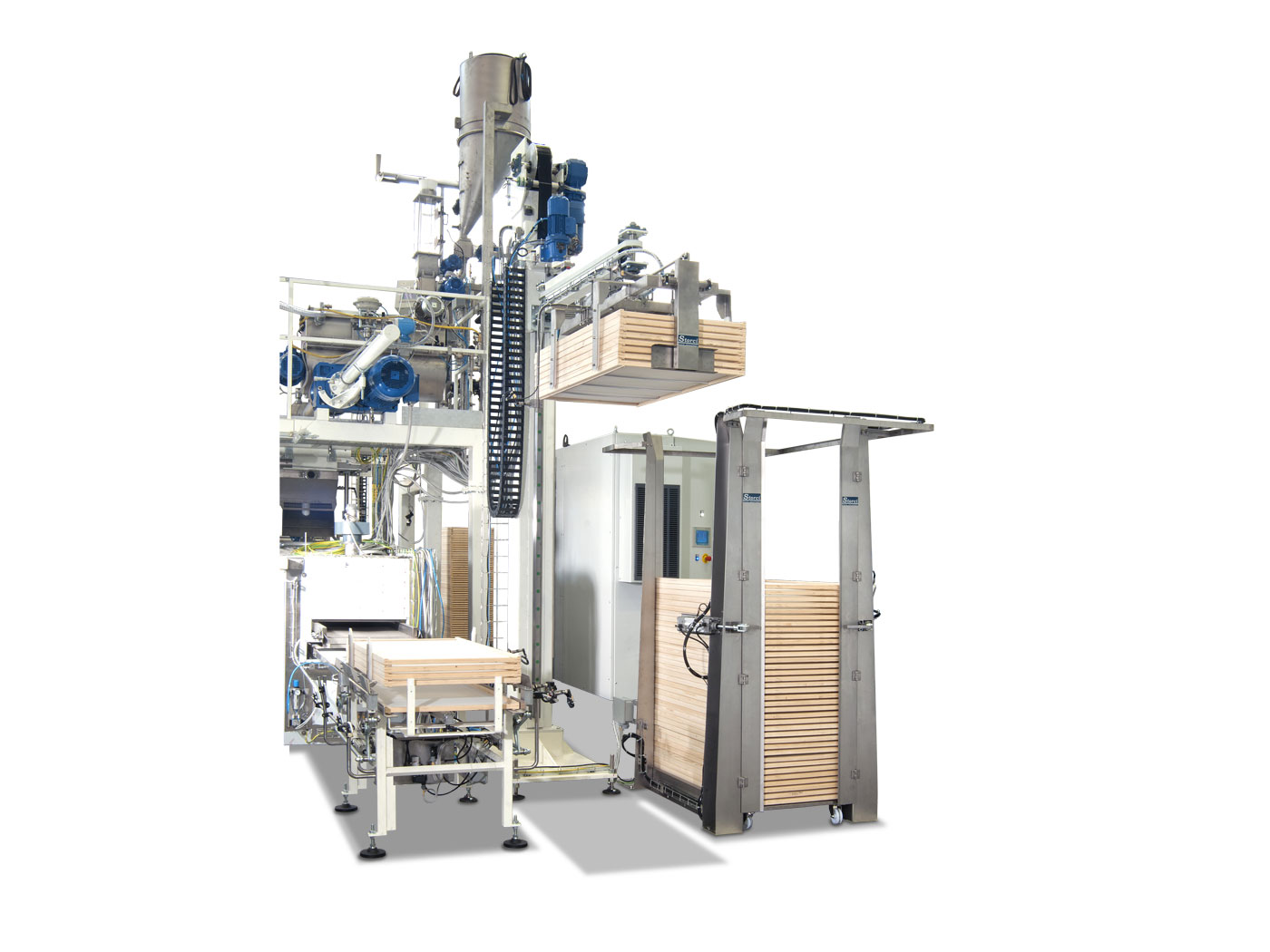

Destacker. At the start of the line the destacker makes it possible to pick up the trays from the trolley and feed them continuously and automatically into the slots on the feeder.
By positioning the trolley full of empty trays in the special safety cage, the robot pick-up head can pick up a constant and adequate number of trays to meet the speed of the trays on the line.

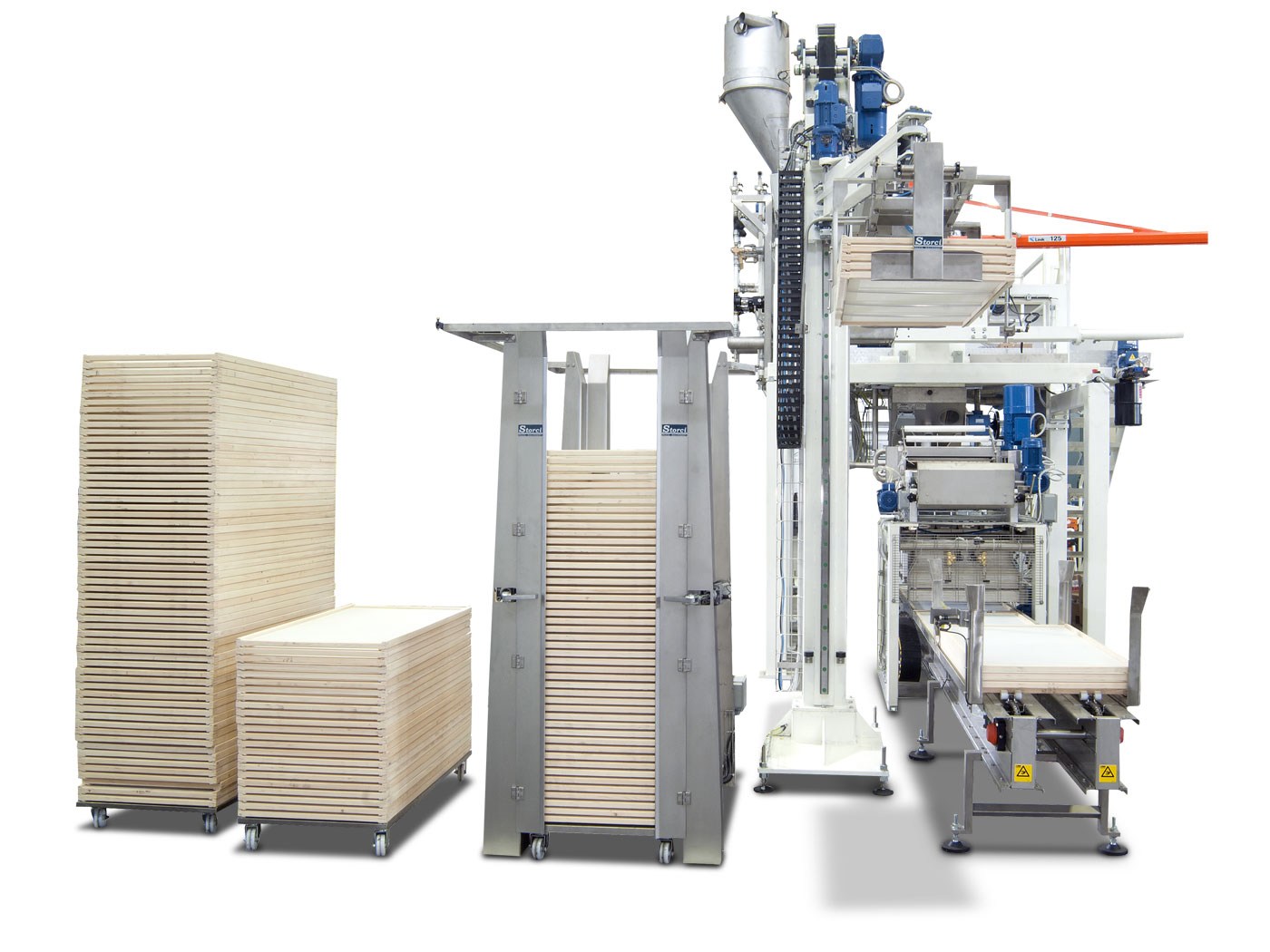

Stacker. The trays full of pasta in line outfeed are stacked on the trolley continuously and automatically. Once full, the trolley in the safety cage can be taken to the drying cell by the operator.
Specifically conceived for Storci lines, ideal for all other lines.

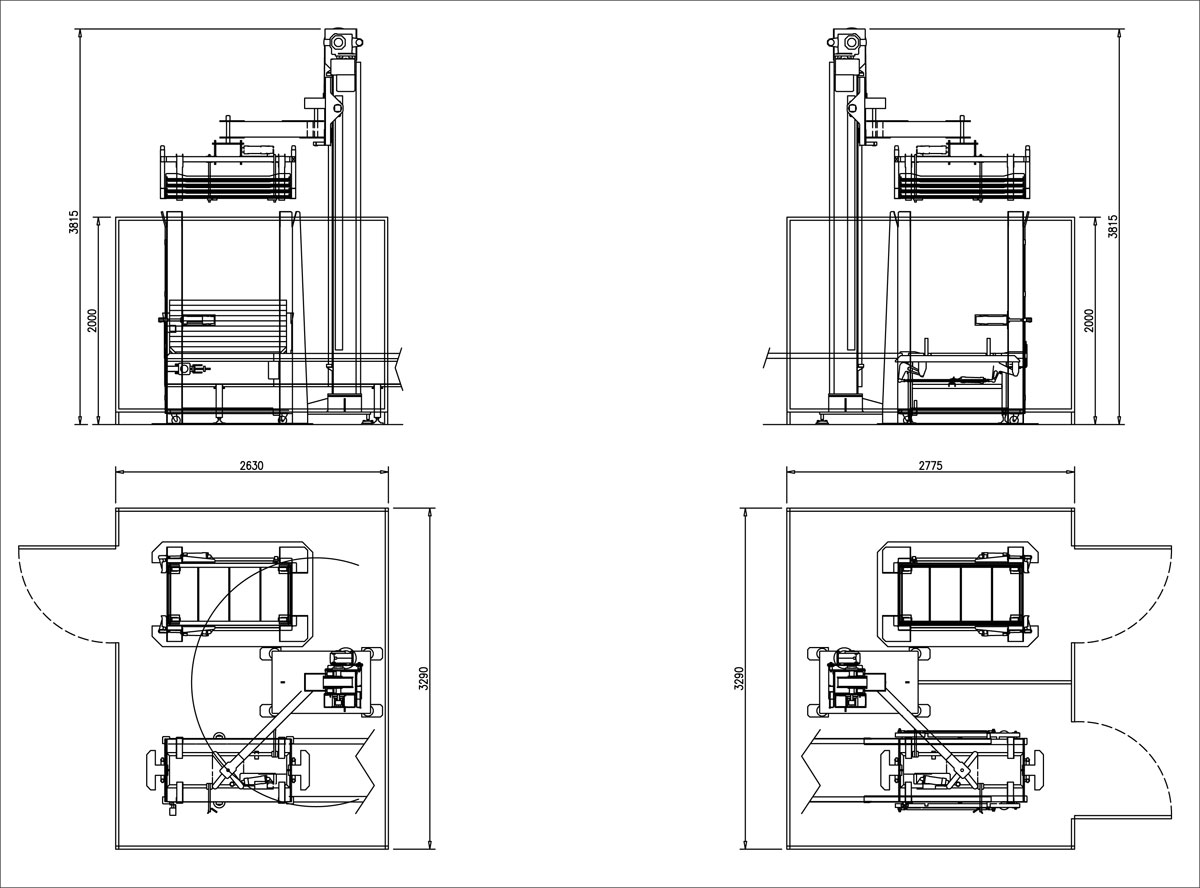

Dimensions


Robo-XI-XD








Production table



ROBO XI / XD
Trays dimensions (mm) 1200x600x55
Speed (trays/min) 4 ( h5 mm )
 Power installed (kW) 1.5
Area (m2) 8.5
Size LxPxH (mm)  2630x3290x3815

Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.







Technical sheets
To open or download and print a file click on it


ROBO XI / XD - Technical Data
