Automatic absolute vacuum dough sheeter in stainless steel for producing pasta sheets. Automatic production which does not require the fixed presence of an operator. Equipped with a Premix^® dough preparation unit complete with automatic dosing of ingredients. Laminated sheet production for filled pasta.

Key features

The “VSF TV/MIX” vacuum dough sheeter represents a revolutionary innovation
Fresh production capacity: approximately 250-500 kg/h
Equipped with a dough preparation unit complete with automatic dosing and Premix® to make this machine fully autonomous
Two kneading rollers and one pair of laminating rollers with separate motor drive
Totally reliable, maximum pasta quality and extremely easy to clean

Main technical features

VSF TV MIX

A revolutionary innovation

Ideal for producing filled pasta and pasta sheets of medium humidity.
Volumetric flour doser
Electronically controlled dosing system for liquid ingredients.
Vacuum kneading tank with filter pump and vacuum gauge.
Bolt-free kneading paddles for easy cleaning
All parts in contact with the dough made from stainless steel and non-toxic polymer.
Pasta sheet conveyor belt.
PLC with touch screen.

Advantages

The VSF TV/MIX dough sheeter is designed to produce pasta sheets in the total absence of air to obtain (based on the use of the same raw materials) a product which is:

A more intense shade of yellow
More elastic
More compact
Better at withstanding cooking

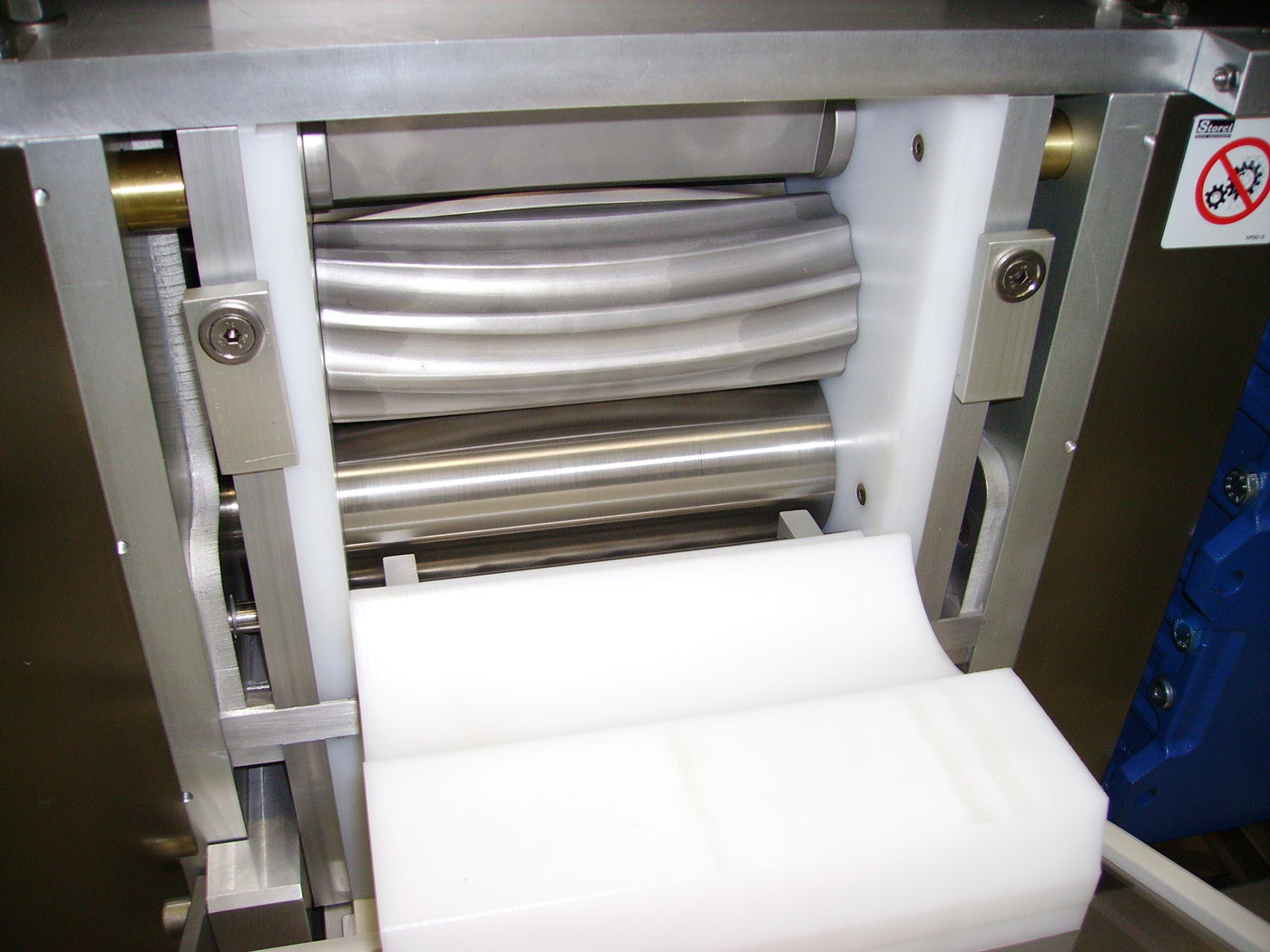

VSF TV MIX Detail

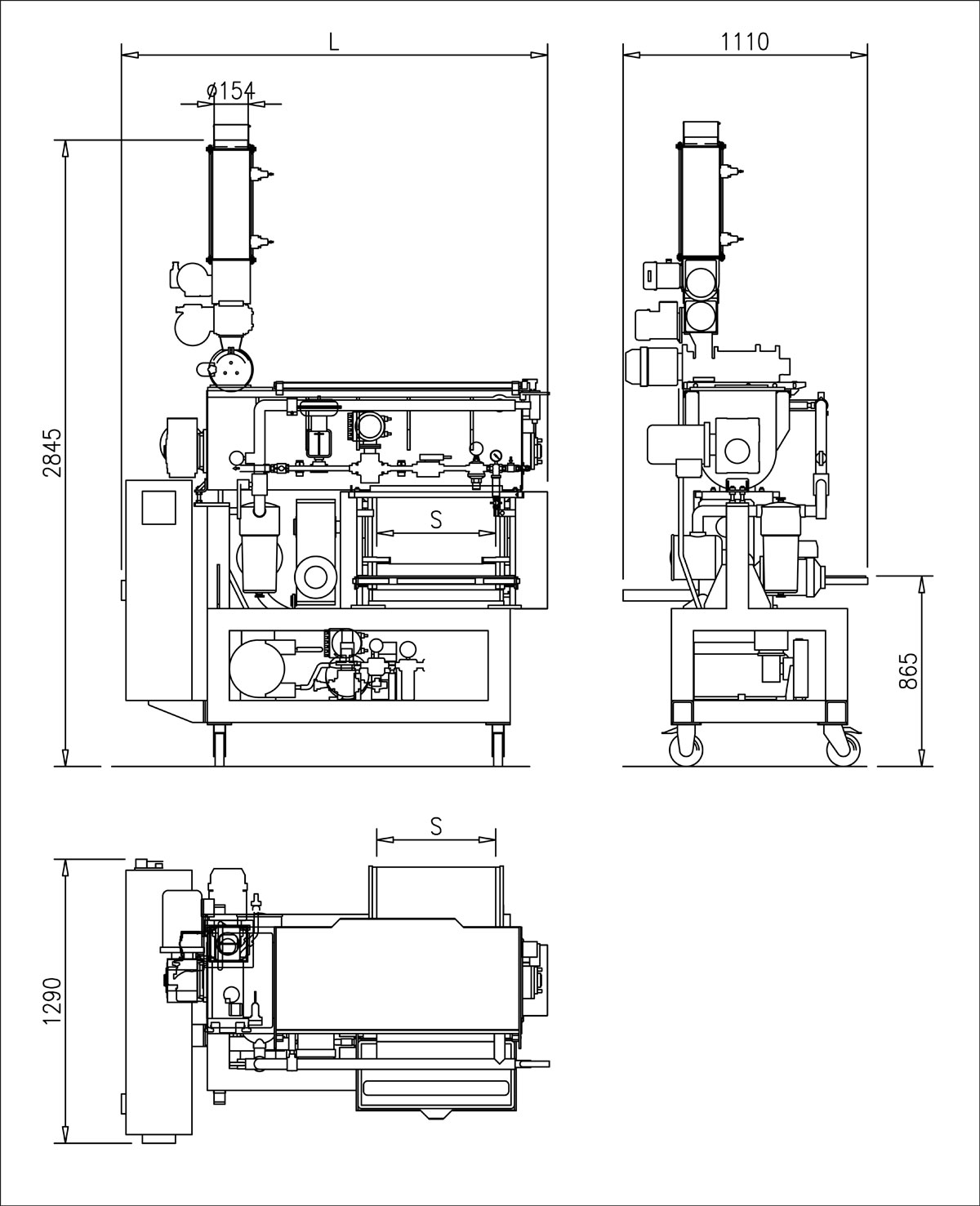

Production Table

	VSF TV/MIX 250	VSF TV/MIX 540
Sheet width S (mm)	250	540
Fresh production(kg/h)	250	500
Installed power(kW)	8	13
Weight (kg)	800	1000
Dimensions LxPxH (mm)	164x129x284	193x129x284

Dimension and technical data are not binding. Storci S.p.A. reserves the right to modify them without notice. Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.
