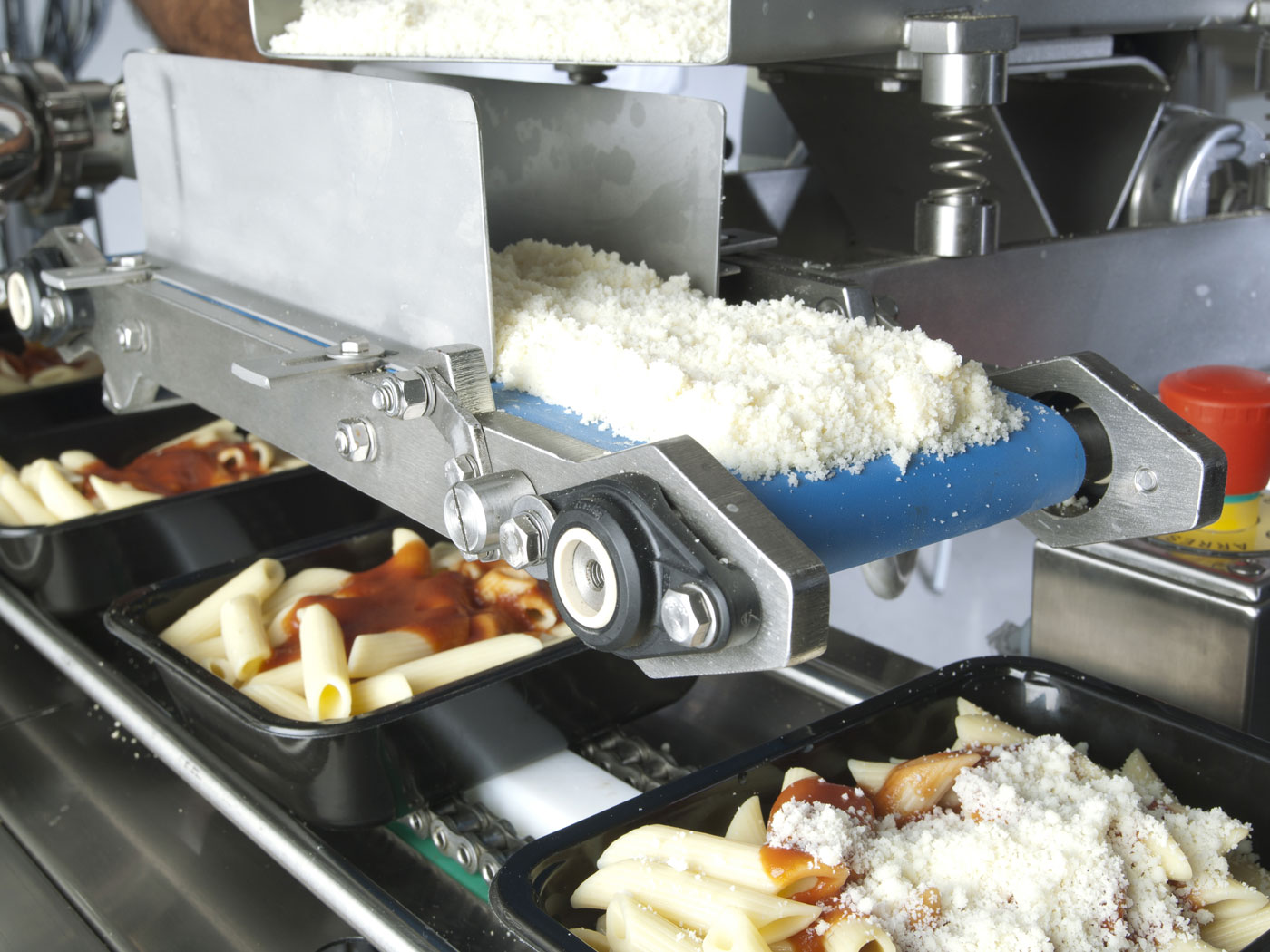

Unit specifically designed for dosing hard cheeses such as Parmigiano-Reggiano and Grana Padano, particularly suitable for high-capacity lines. The support structure is fitted either with swivel castors, so it is easy to move and position under the trays conveyor, or a fixing plate so it can be installed directly on the side of the production line. Operation: the grated cheese is transferred from the top hopper to the lower hopper by means of a vibrating plate. A conveyor then transports the product through the discharge hopper which is suitably positioned over the transiting trays.

Key features

Ideal for use in the production of ready meals, even on high-capacity lines.
Suitable for dosing grated hard cheeses such as Parmigiano-Reggiano and Grana Padano
Parts in contact with the cheese made from non-stick material
Quick, tool-free disassembly of all parts so cleaning couldn’t be easier
Recipes can be called up and controlled from the Operator Panel

Main technical features

Rapid system for interchanging the discharge hopper for tray size changeovers
Max production capacity: 50 doses/min
Construction materials: AISI 304 (AISI 316 on request) and/or other parts in food-safe materials
Inner part of the hopper made from non-stick material
Tray presence photocell
Tubular sections welded at 45° (diamond shape) to promote washing water run-off for improved sanitization
Recipes set and called up from the touch screen
On-line dosing correction can be performed via remote control

Esempio di impasto

Production table

DF 400 Cheese doser
PRODUCT	Grated cheese (Parmigiano Reggiano)
PERFORMANCE (DOSES/MIN)	50
CONSTRUCTION MATERIAL	Aisi 304
HOPPER MATERIAL	Non stick
PLC WITH TOUCH SCREEN	Yes
