Rec 1002


Special unit for the correct recovery of the fresh pasta scraps produced at the beginning of production, during shape changeover operations, filled pasta off-cuts, etc. Allows the user to obtain pasta scraps which can easily be re-kneaded with excellent results.



play Video
Play the video




Key features



  • Unit for recovering fresh pasta scraps: leading ends and tails from production, shape changeover scraps, off-cuts from filled pasta, etc.
  • With automatic elevator column for 1000 x 1200 x 600 mm trays
  • Uniform size of the ground scraps and easy re-kneading
  • Openable grinder: for a fast and easy cleaning




Main technical features













Rec 1002









No pasta scraps waste


  • New basket system which forces the scraps through holes (of a set diameter)
  • Load hopper for manual or automatic feeding of the fresh product
  • Top of the range model incorporating a stainless steel blower (high-thickness steel for acoustic insulation) with quick opening (for easy cleaning) of the entire motor and rotor assembly, set on axial guides
  • Worm screw to guarantee more constant dosing of scraps into the tank over time

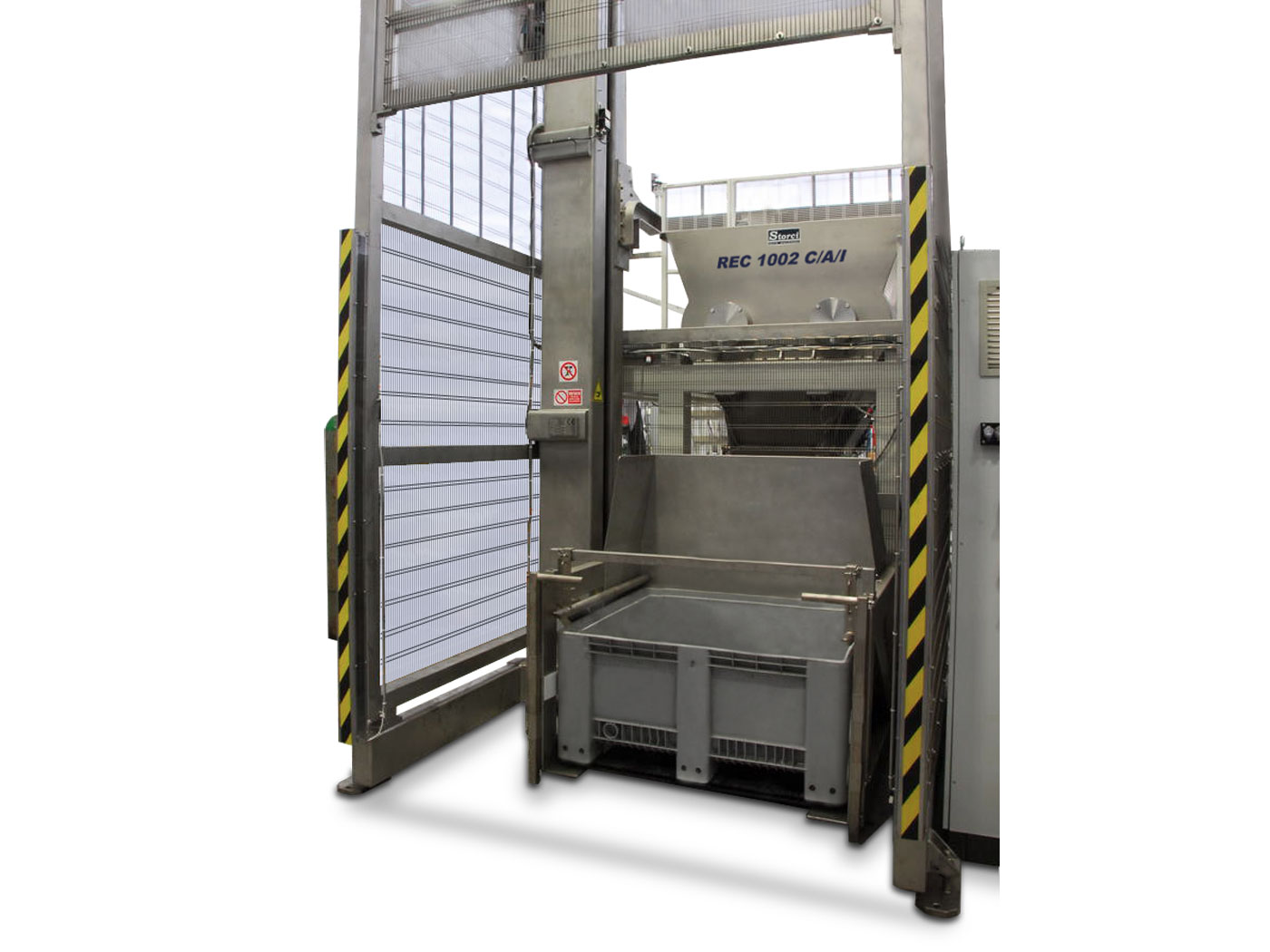

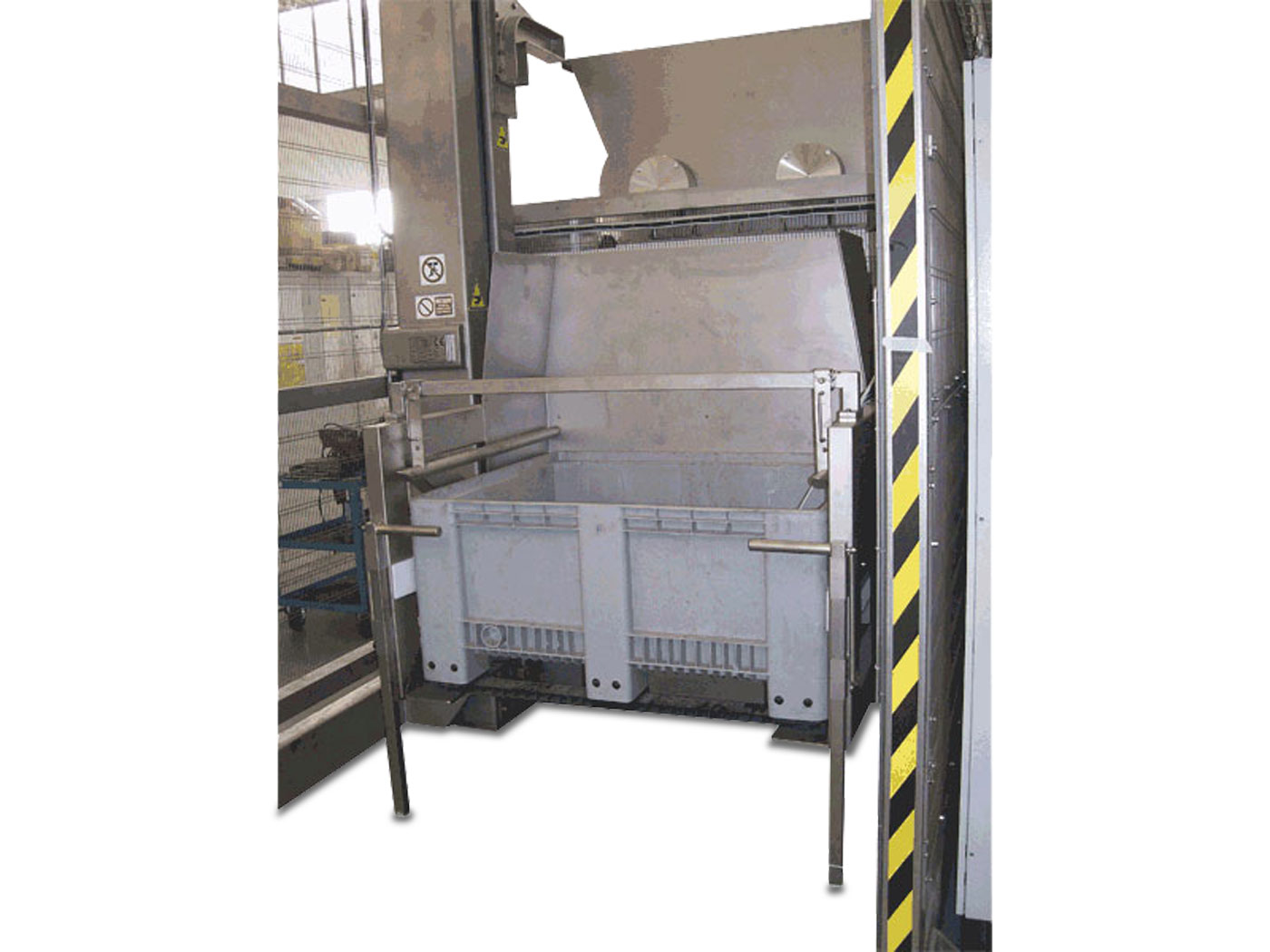

  • The system comes complete with an elevator/tipper for the tubs containing the fresh product
  • 130-litre shredder tank with dual shaft
  • Processing capacity (indicative): approximately 600-700 kg/h
  • Suitable for medium and large pieces
  • Ideal for all dough tanks




Optional







  • Piping kit, connections, large-radius bend and decanting centrifugal separator
  • Manual or automatic switching valves for multiple feed
  • Tank level photocell and relative insufficient product alarm
  • Can be combined with a soundproof booth




Production table


REC 1002 C/A/I
MODEL POWER (kW) LENGTH OF PIPING (m) GRINDING CAPACITY (kg/h) DIMENSIONS (LxPxH)
REC S 26.5 20 600-700 (*) 2700x5800x4250
REC M 30 28 600-700 (*) 2700x5800x4250
REC L 37.5 40 600-700 (*) 2700x5800x4250

Dimension and technical date are not binding. Storci S.p.A. reserves the right to modify them without notice.

Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.

(*) for products with a dry surface and maximum, evenly distributed, humidity of 30%.

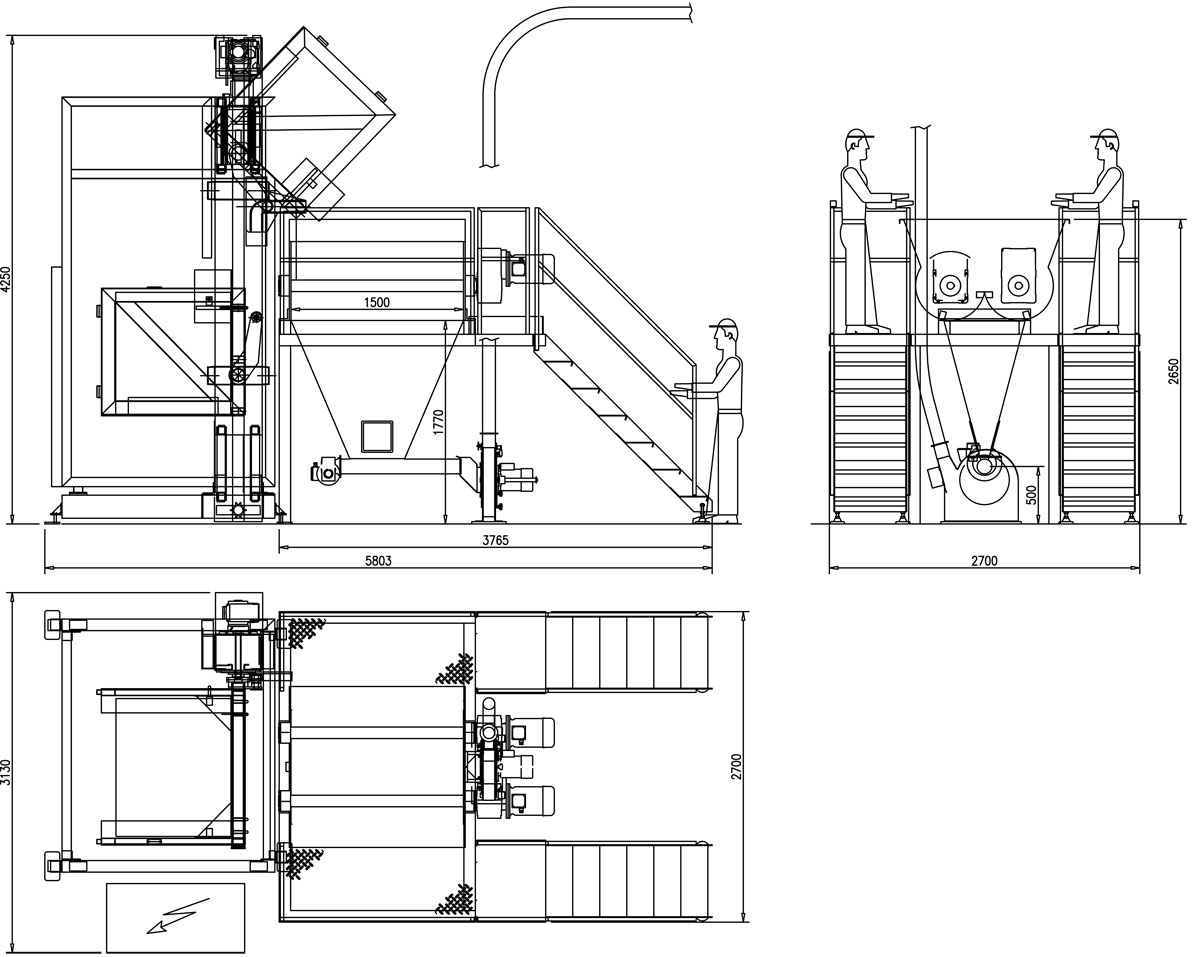

Dimensions


Rec 1002 CAI
